멀티콥터 용 30A ESC 하비윙 Platinum-30A-Pro

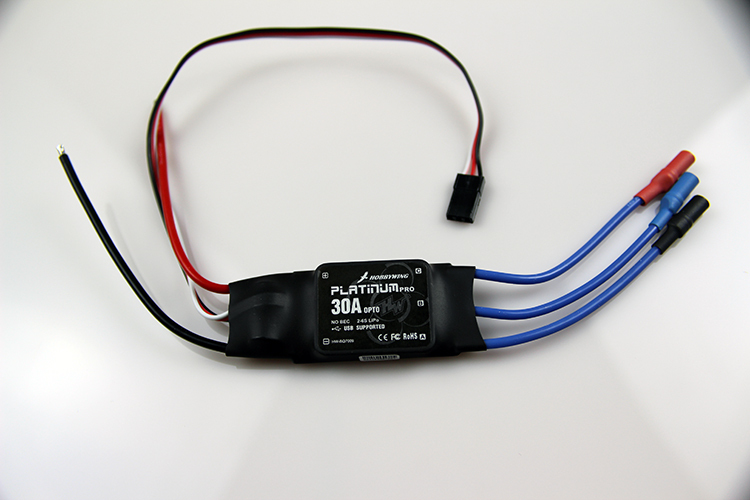

3.5mm 컨넥터가 와이어로 결합되어 있습니다. (사진 참조)

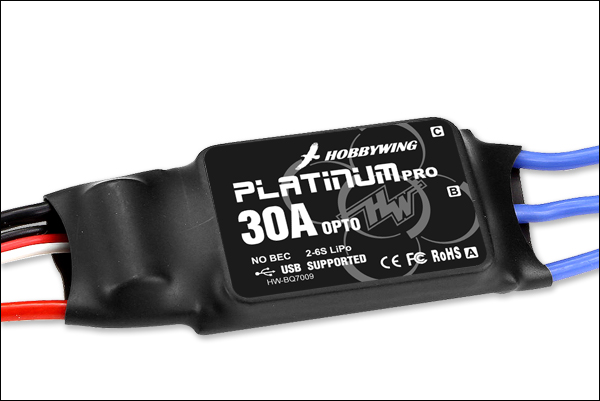

”Platinum-30A-OPTO-PRO” ESC is the best choice for multi-rotor aircraft.

Product Details:

1 Specification

1.1 Output: Continuous 30A, burst 40A up to 10 seconds.

1.2 Input Voltage: 2-6 cells lithium battery or 5-18 cells NiMH battery.

1.3 BEC: Not available.

1.4 Refresh rate of the throttle signal: 50Hz to 432Hz.

1.5 Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.

(BLM = BrushLess Motor)

1.6 Size: 55mm (L) * 25mm (W) * 12mm (H).

1.7 Weight: 31g.

2 Features

2.1 High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.

2.2 Optimized for multi-rotor aircraft.

2.3 Smooth, linear, quick and precise throttle response.

2.4 Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.

2.5 The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.

2.6 User programmable.

2.7 Multiple program methods supported: transmitter stick, Digital LED Program Card, Multifunction LCD Program Box, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.
