4X GARTT ML 3508 415KV 3508 Brushless Motor For Multirotor Quadcopter Hexa Drone
주의사항
모터 4개가 1세트인 상품 입니다.

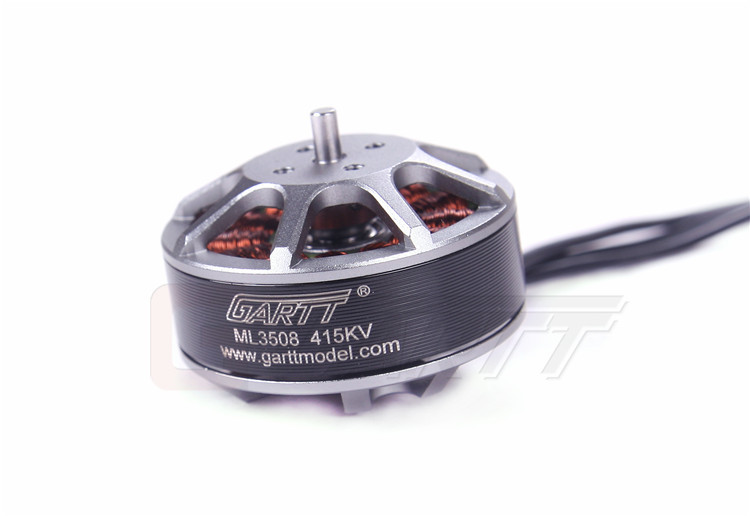

GARTT ML3508 415KV Brushless Motor For Multirotor Quadcopter Hexa
When using the screws we provided, pay attention to that if the thickness of the mounting plate of the motor is too thin, it may cause the screws too long and push up to the motor coil.

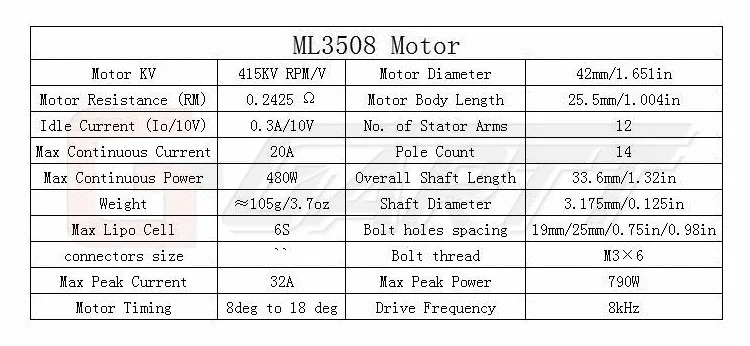

Specification,
Motor KV: 415KV RPM/V
Motor Diameter: 42mm/1.651in
Motor Resistance (RM): 0.2425 Ω
Motor Body Length: 25.5mm/1.004in
Idle Current (Io/10V): 0.3A/10V
No. of Stator Arms: 12
Max Continuous Current: 20A
Pole Count: 14
Max Continuous Power: 480W
Overall Shaft Length: 33.6mm/1.32in
Weight: ≈105g/3.7oz
Shaft Diameter: 3.175mm/0.125in
Max Lipo Cell: 6S
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6
Motor Diameter: 42mm/1.651in
Motor Resistance (RM): 0.2425 Ω
Motor Body Length: 25.5mm/1.004in
Idle Current (Io/10V): 0.3A/10V
No. of Stator Arms: 12
Max Continuous Current: 20A
Pole Count: 14
Max Continuous Power: 480W
Overall Shaft Length: 33.6mm/1.32in
Weight: ≈105g/3.7oz
Shaft Diameter: 3.175mm/0.125in
Max Lipo Cell: 6S
Bolt holes spacing: 19mm/25mm/0.75in/0.98in
Bolt thread: M3×6

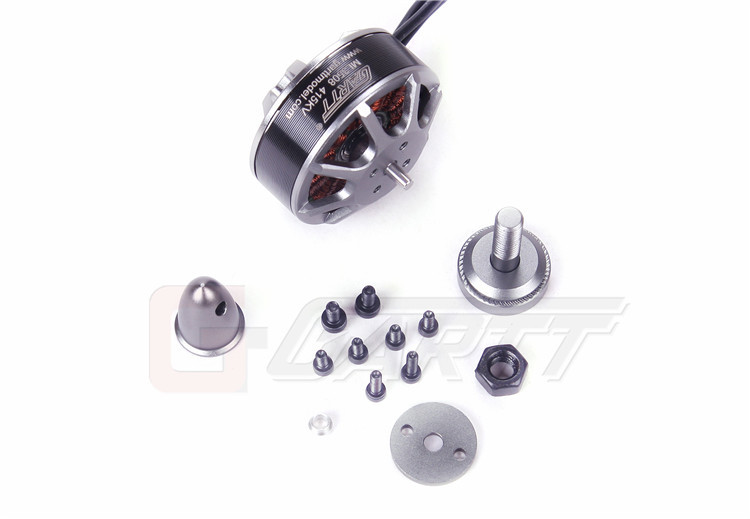

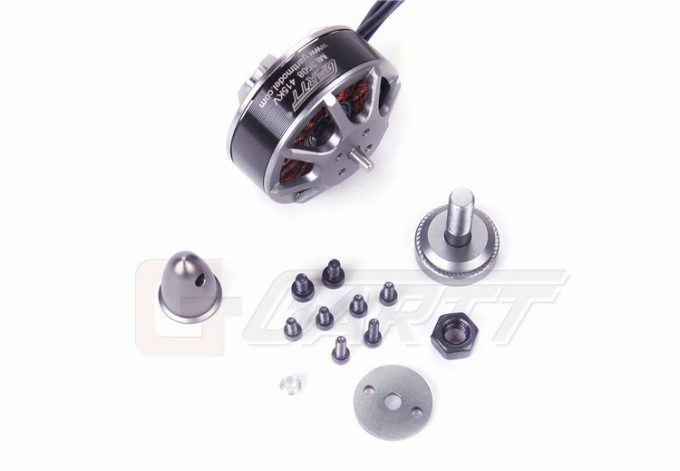

Package content:
ML3508 415KV Brushless Motor
ML3508 580KV Brushless Motor
