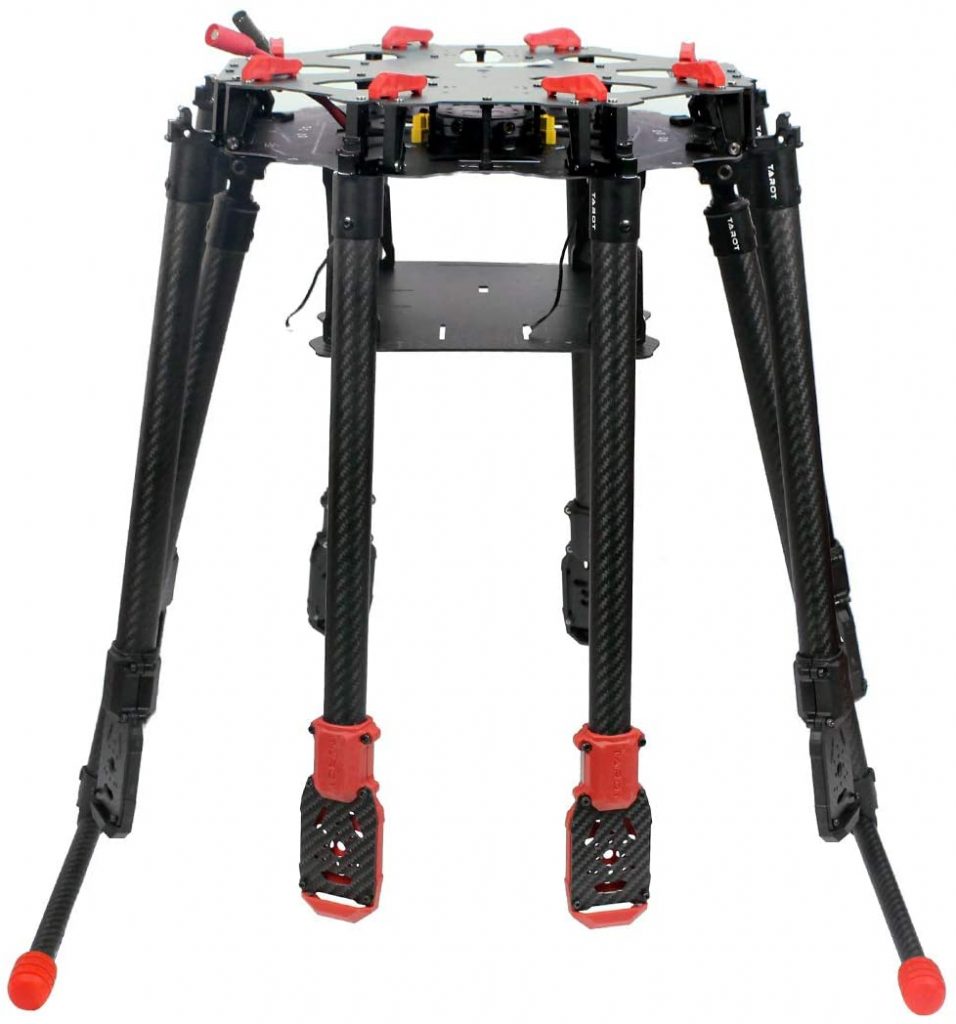

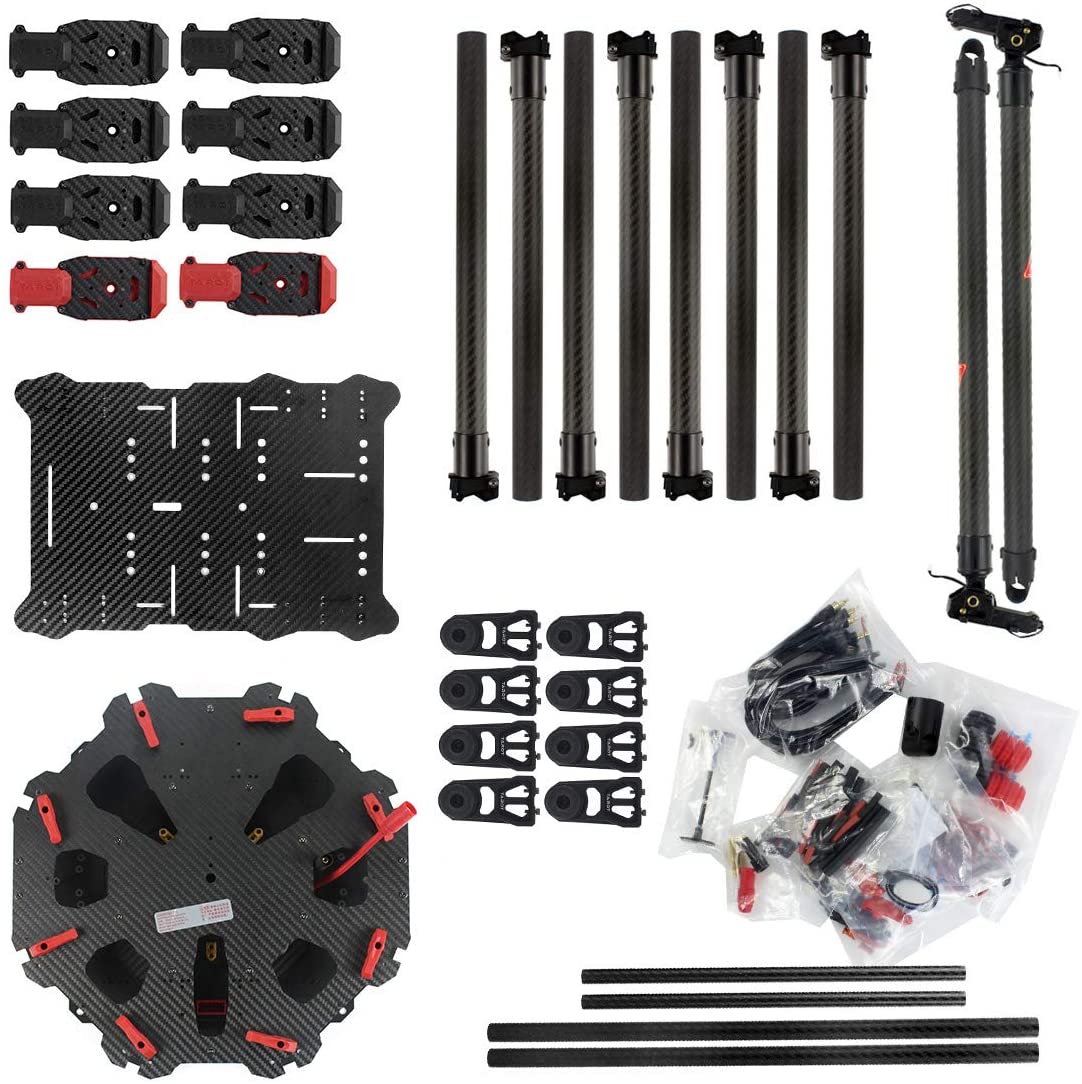

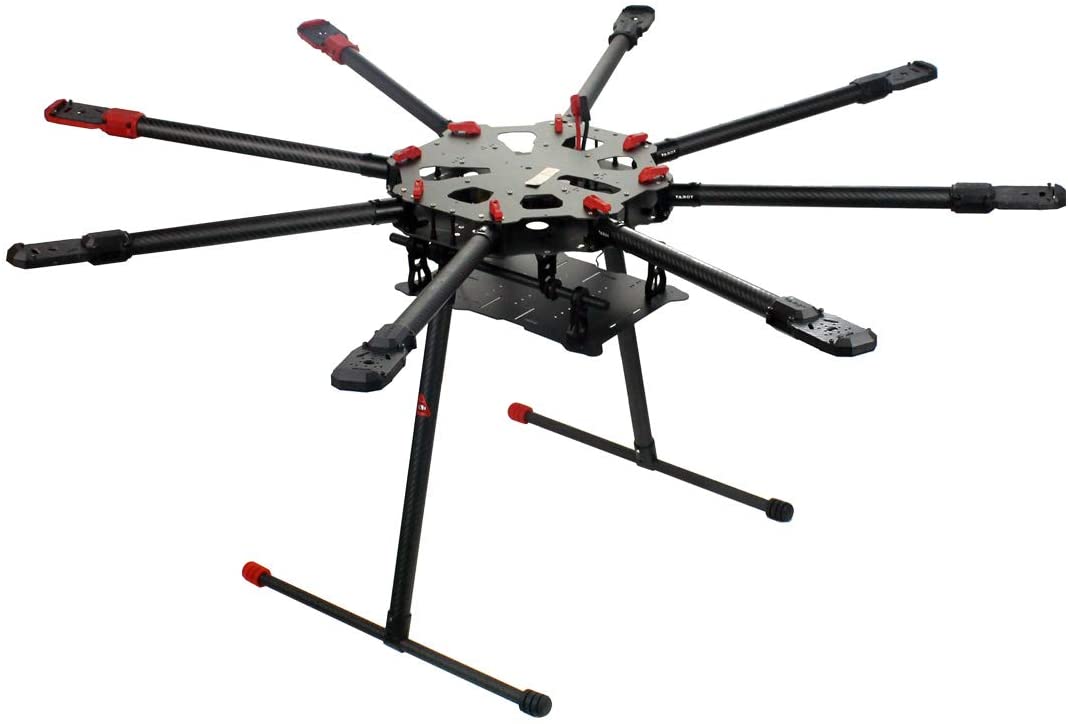

Tarot X8 1125mm 대형 옥토콥터 프레임 키트
Product Description:
TAROT X8 multiaxial for professional aerial photography aircraft is designed for users of a multi-axis flight carrier, standard new electric contraction folding tripod, umbrella folding machine arm, integrated PCB board wiring the power, more efficient power transfer and other connections safety, provide adequate space for the installation of various flight control systems.
8 rotors provide sufficient power, even if one axis unexpectedly stop working, but also to ensure that the aircraft is in a stable condition. Whole has lightweight, portable and convenient. Maximum take-off weight of about 10KG, easily carrying 5D level aerial equipment, with 15 minutes of battery life, as well as 12 minutes of effective working time.
State Intellectual Property has been granted TAROT HM Ltd. This product five patents:
patent number patent number: 2014204282854
patent number patent number: 2014203682366
patent number patent number: 2014302624585
patent number patent number: 2014301541104
patent number patent number: 2014302583208
Product Specifications:
– Symmetric Motor Wheelbase: 1,125mm
– Folding propeller Specifications: 15~16 inch
– Arm length: 395mm
– Arm Weight: 122g
– Centre plate diameter: 335mm
– Undercarriage clearance height: 490mm
– Battery Specifications: 22.2V, 10,000mAh ~ 22000mAh
– 6S Brushless ESC: 40A
– Maximum power consumption: 4000W
– Hover Power: 1800W (11.0KG)
– Hover Time: 15~20mim(Depend on Payload)
– Working temperature: -10 ℃ ~ 40 ℃
– Weight: 3.42kg(w/o Battery)
