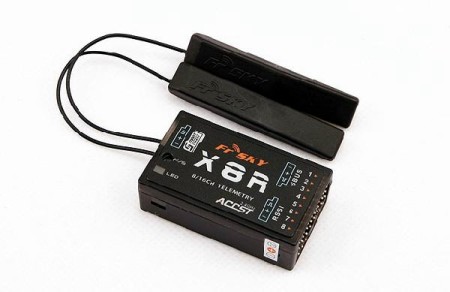

FrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R – PCB Antenna

FrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R 는 일반와이어 안테나와 PCB안테나 버전이 있습니다. PCB 안테나 버전의 무선통달거리가 약 20% 더 깁니다.

 Features:

THIS IS THE PCB VERSION.

What’s New:
– More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port,
or combine two X8R to become a 16 channels receiver.
-Parallel two X8R to become a 16 channel receiver.
-With RSSI output: analog voltage output (0~3.3V)
-Smart Port enabled, realizing two-way full duplex transmission.

Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, X8R receiver, new hub-less sensors, new Smart Dashboard,etc), serial port user data and other user input/ output devices can be connected without limitations for numbers or sequences at a high transmission speed.

Details:

FrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R – PCB Antenna
Dimension: 46.25×26.6×14.2mm (L × W × H)
Weight: 12.1g
Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port
or combine two X8R to become a 16 channels receiver)
With RSSI output: analog voltage output (0~3.3V)
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Operating Range: full range (>1.5km)
Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode
FrSky Taranis X9D/XJT in D8 mode
FrSky Taranis X9D/XJT in D16 mod

사용자메뉴얼(영문) 다운로드
